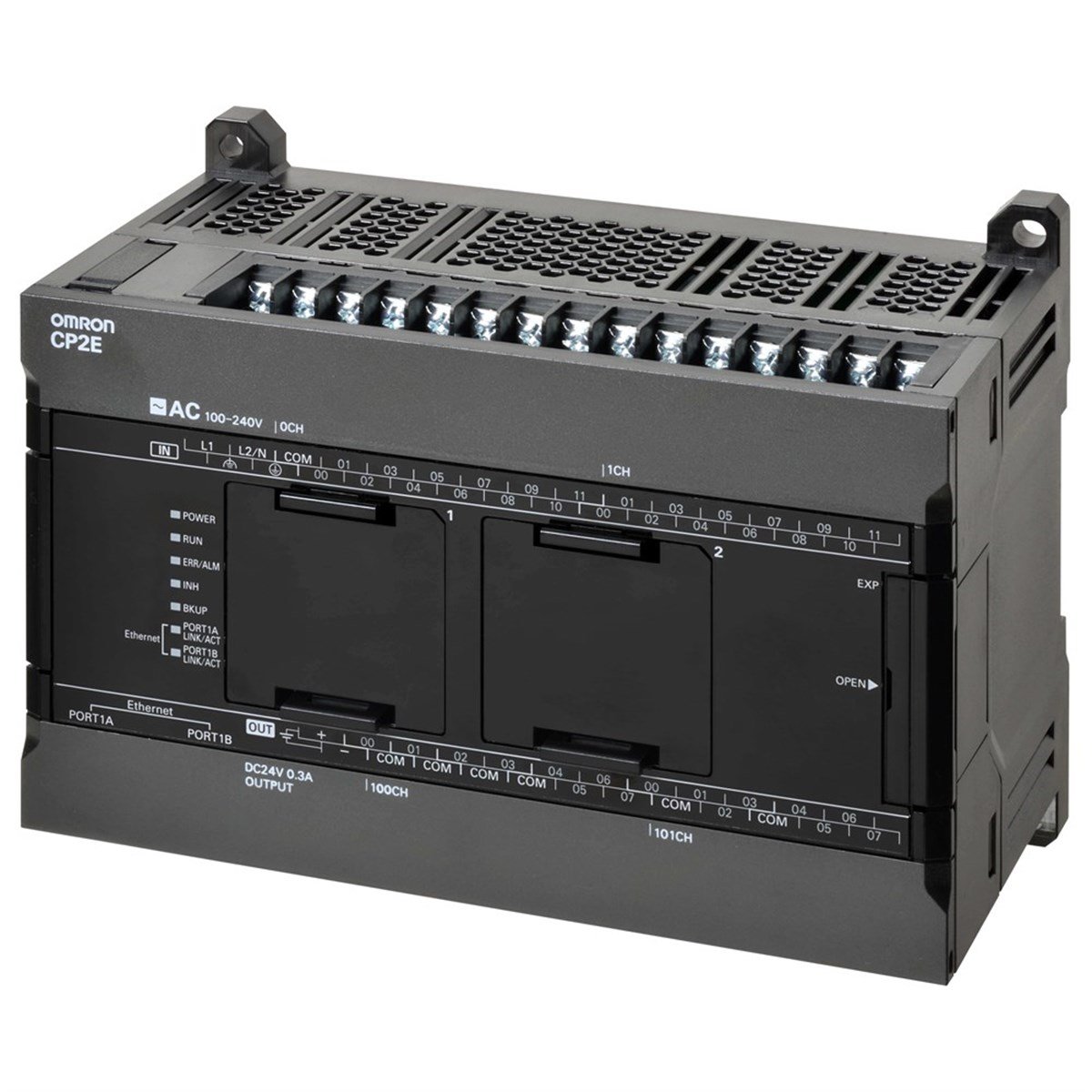

Omron CP2E-N40DR-A

Name: Omron CP2E-N40DR-A
Brand: OMRON
SKU: CP2E-N40DR-A

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

CP2E series compact PLC - Network type; 24 DI, 16 DO; Relay output; Power supply 220 VAC; 10 kStep Program memory

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Supply voltage type	AC
Number of digital inputs	24
Input type	PNP/NPN
Number of digital outputs	16
Output type	Relay
Program capacity	20 K steps
Data memory capacity	16 K words
Logic execution time	0.23 µs
Communication port(s)	Ethernet TCP/IP
Number of Ethernet ports	2
Number of USB ports	0
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	6
Max. encoder input frequency	100 kHz
Max. number of PTP axes	0
Max. pulse output frequency	0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	32
Max. number of local I/O points	160
Max. number of expansion units	3
Built-in auxiliary 24 VDC output	300 mA
Operating temperature range	-20-60 °C
Height	90 mm
Width	150 mm
Depth	80 mm
Weight	0 g
