Omron F3SG-4RA0320-14

Name: Omron F3SG-4RA0320-14
Brand: Omron
SKU: F3SG-4RA0320-14

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

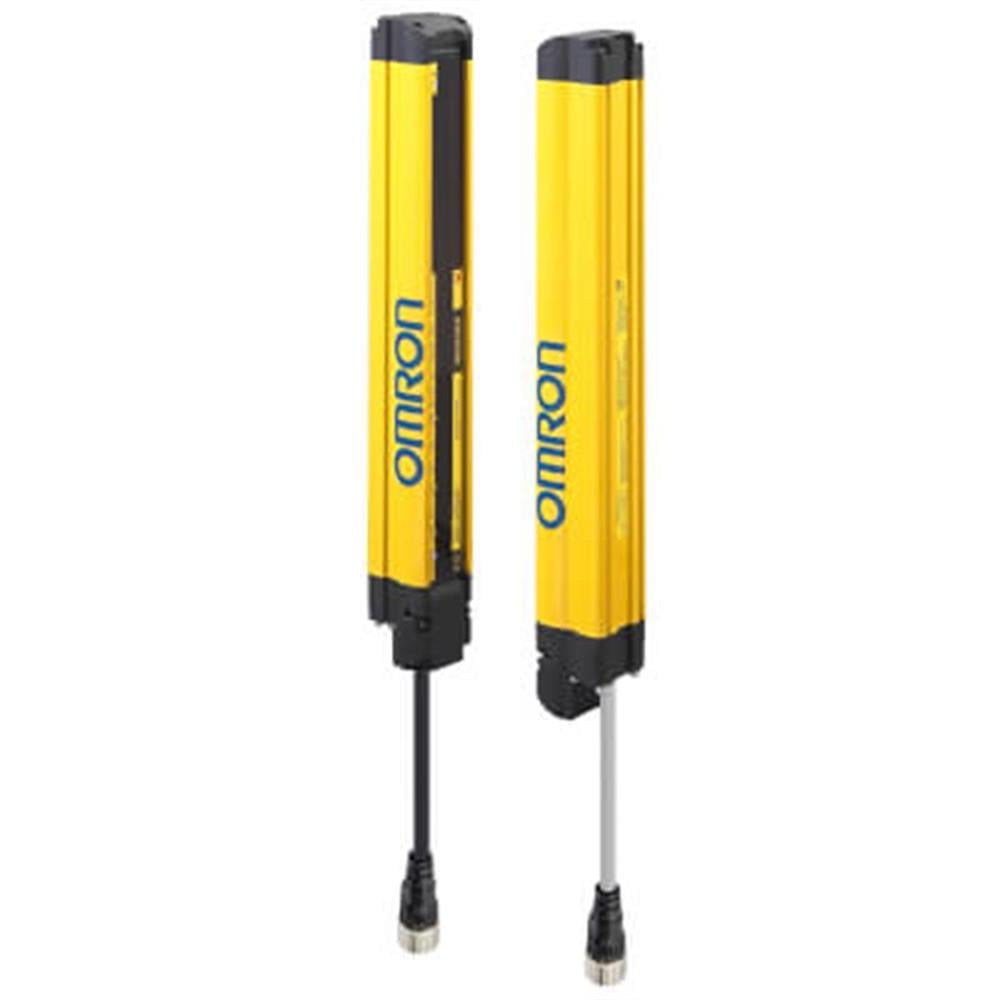

Safety Sensor, F3SG-R Advanced, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 320 mm, PNP/NPN

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Type of safety according to IEC 61496-1	4
Type of protection	Finger protection
Detection capability	14 mm
Safety field height	320 mm
Beam gap	10 mm
Number of beams	31
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Maximum safety range	10 m
Minimum operating distance	0.3 m
Response time	8 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSD	PNP/NPN
Communication port(s)	USB
Suitable for safety functions
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	M12 pigtail Smartclick connector
Supply voltage DC	19.2-28.8 V
Voltage type	DC
Max. output current at protected output	300 mA
Degree of protection (IP)	IP67
Ambient temperature	-10-55 °C
Overall length	368 mm
Height of sensor	35 mm
Width sensor	35 mm
