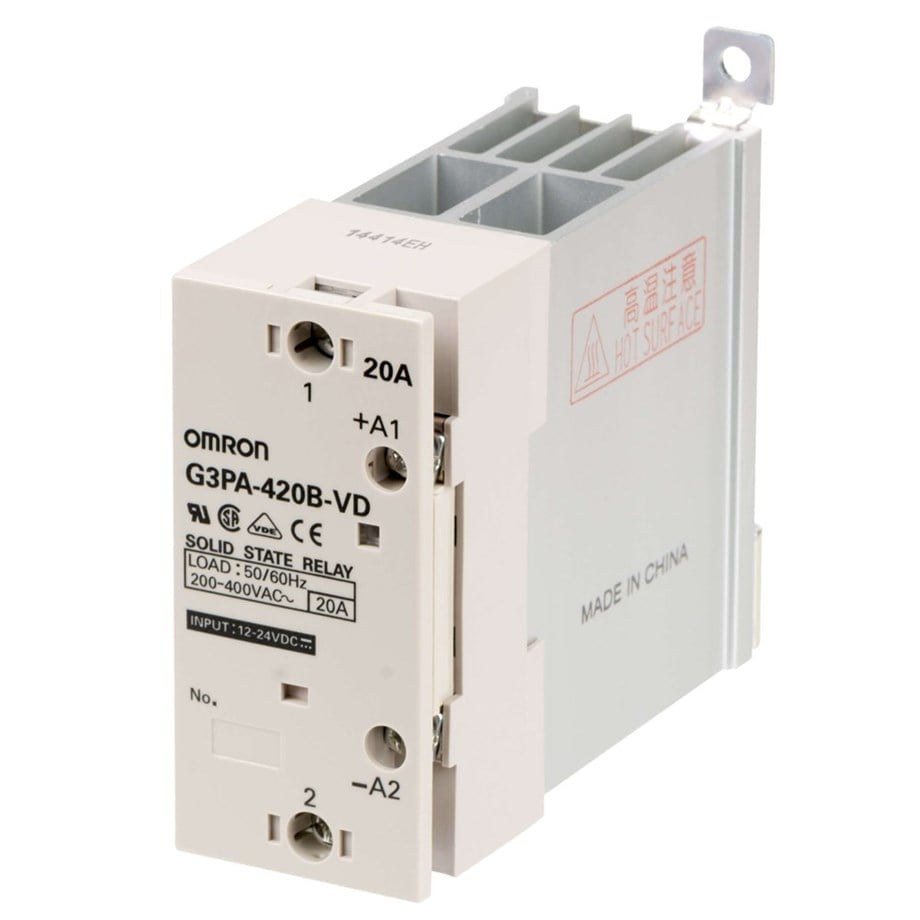

Omron G3PA-420B-VD 12-24VDC

Name: Omron G3PA-420B-VD 12-24VDC
Brand: OMRON
SKU: G3PA-420B-VD 12-24VDC

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

Solid state relay, DIN rail/surface mounting, 1-pole, 20 A, 440 VAC max

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Application	ON/OFF control
Number of phases	1
Number of poles	1
Mounting method	DIN rail
Terminal	Screw
With LED indicator
Rated operational voltage, AC	180-400 V
Operating voltage range, AC	180-440 V
Rated operation current Ie at AC-1	20 A
Rated load current Close mounting	16 A
Permissible I²t value	260 A²s
Height	100 mm
Width	37 mm
Depth	100 mm
Supply voltage DC	12-24 V
Control current max.	7 mA
Must operate voltage max.	9.2 V
Must release voltage min.	1 V
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Isolation	Phototriac
Switching at zero-crossing
