Omron G3RV-SR700-A 24VDC

Name: Omron G3RV-SR700-A 24VDC
Brand: OMRON
SKU: G3RV-SR700-A 24VDC

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

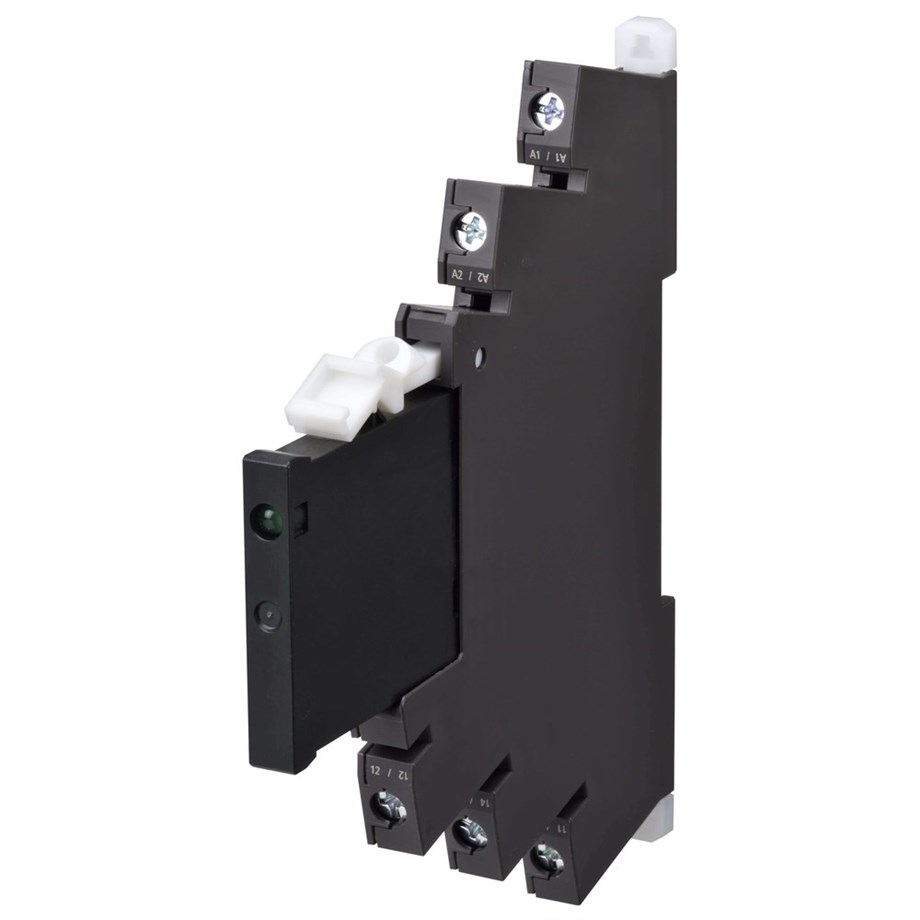

Slimline SSR 6mm, incl. socket, AC output TRIAC, 2A, Screw terminals, 24V DC, Zero-cross

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Application	Interface
Number of phases	1
Mounting method	DIN rail
Terminal	Screw
Complete with socket
With LED indicator
Rated operational voltage, AC	100-240 V
Operating voltage range, AC	75-264 V
Rated operation current Ie at AC-1	2 A
Height	88.871 mm
Width	6.2 mm
Depth	77.901 mm
Supply voltage DC	19.2-26.4 V
Control current max.	12 mA
Must operate voltage max.	21.6 V
Must release voltage min.	1 V
Maximum operating temperature	55 °C
Minimum operating temperature	-30 °C
Isolation	Phototriac
Switching at zero-crossing
